Patras

Modular Substrate Transport System

Patras is a proven high-performance transport system for substrate reels from goods reception up to the winders of the printing press or the corrugator.

Patras

The Modular System for Substrate Logistics

  • Modular design
  • Reel and pallet transport
  • From manual substrate supply to fully automated intralogistics
  • Highly efficient substrate intralogistics from a single source
  • Integration with an ERP System possible

Modular Systems for Substrate Intralogistics

The name “Patras” is derived from the abbreviation for “Paper Transport System”. From manual loading to fully automated large-scale intralogistics, from incoming goods to waste disposal, reel or pallet transport, the options are endless.

Designed for supplying winders of printing presses and splicers of corrugators, Patras is extremely adaptable. The intralogistics system also allows pallet logistics for sheetfed printing or converting applications.

Whether web offset, CI Flexo, digital printing, sheetfed printing or corrugators, Patras is a proven high-performance substrate transport system, adaptable to the customers’ requirements.

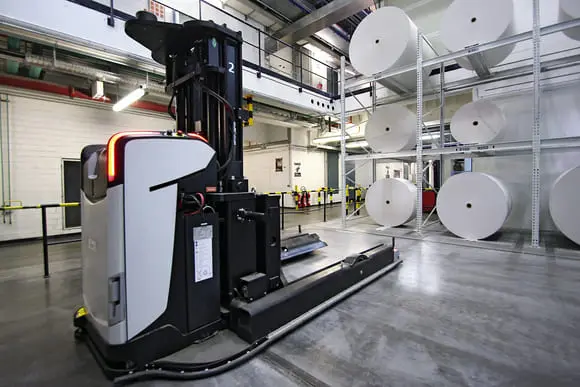

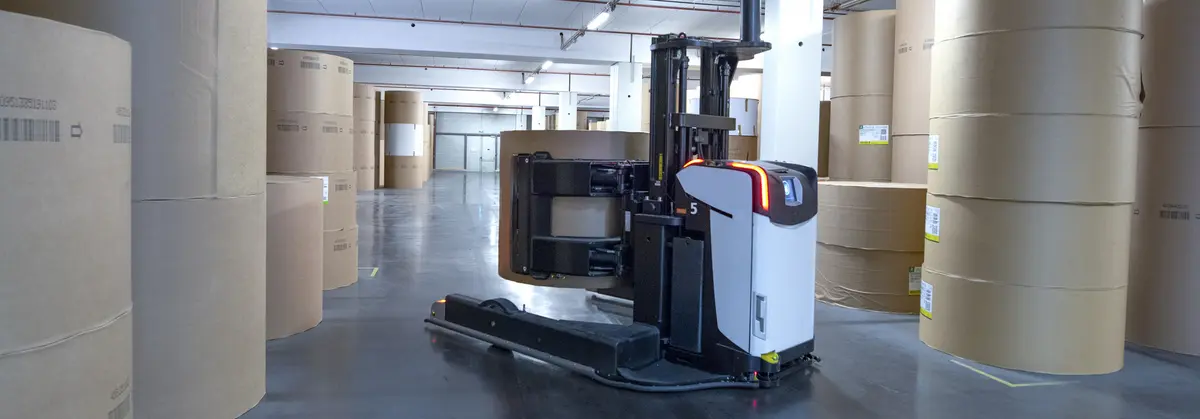

Automated Guided Vehicle (AGV)

The AGVs are used to transport the substrate reels or substrate pallets in the main storage as well as in the daily storage. Supplying the unwinders and unloading the rewinders with AGVs is the ideal solution for printing presses and corrugators.

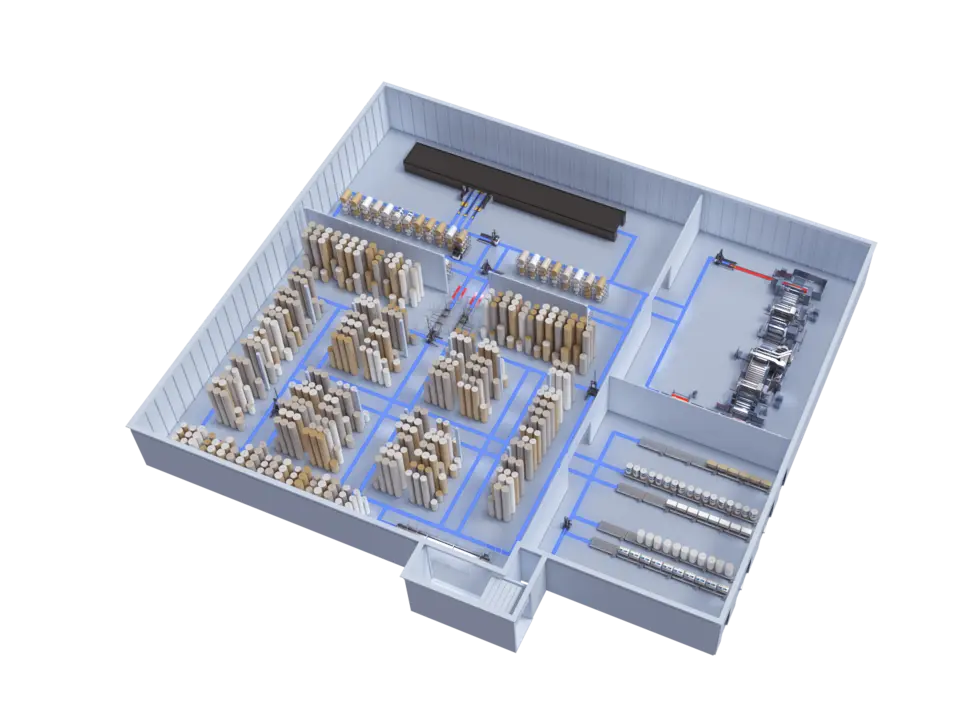

All is managed by the warehouse management system that is also modular, from organising the part lanes in the main storage to managing transports, reel or pallet, within the daily storage from the unpacking station, to the rack system to the printing press or corrugator.

Application Examples

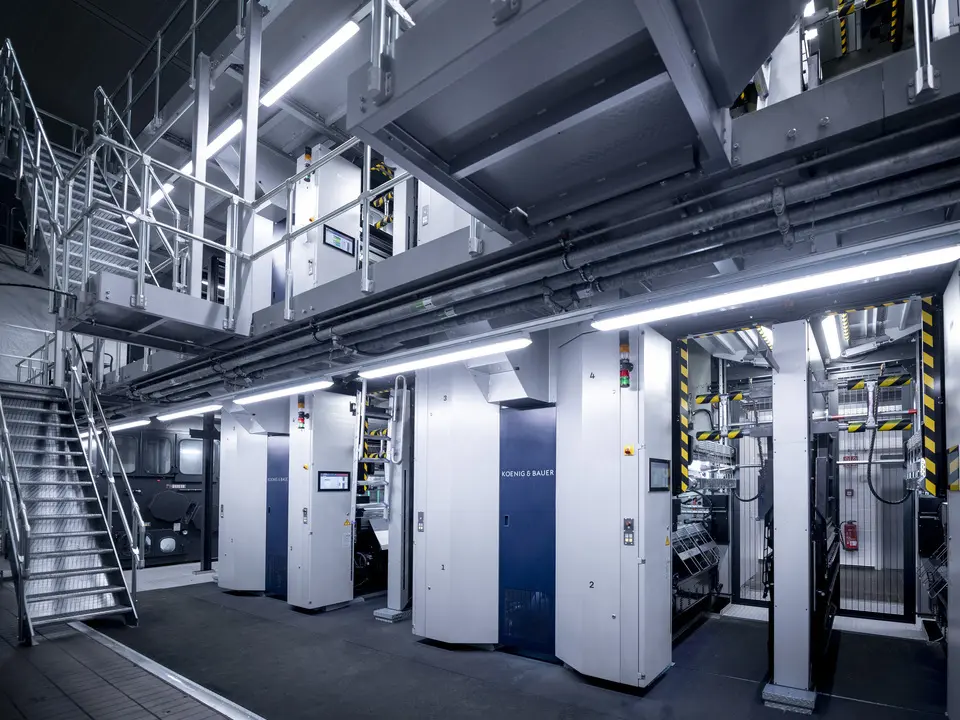

Feeding of webfed printing presses

Thanks to the modular design, Patras roll logistics can be configured to suit individual production and space requirements for webfed offset printing presses.

Handling for flexographic printing systems

The packaging sector is characterised by a high variability of substrates as well as very specific requirements depending on the segment and size of the company. Patras offers a variable solution, tailored to the customer's requirements.


Reel logistics as an important building block for digital printing technology

Digital printing has already established itself in all areas of the printing industry. Patras is an important building block for the further growth of industrial digital printing technologies on the market.

Technical Data of Patras

Standard

Max. Reel Weight

6,000 kg (6.6 US tons)

Reel Diameter1)

Up to 1,800 mm (70.9 in)

Reel Width2)

300 - 2,800 mm (11.8 - 110.2 in)

1) other diameters on request

2) other widths on request

Contact

Are you interested in Patras?

Patras

Sales & Product Marketing

Koenig & Bauer Digital & Webfed
Friedrich-Koenig-Str. 4
97080 Würzburg

Related Products

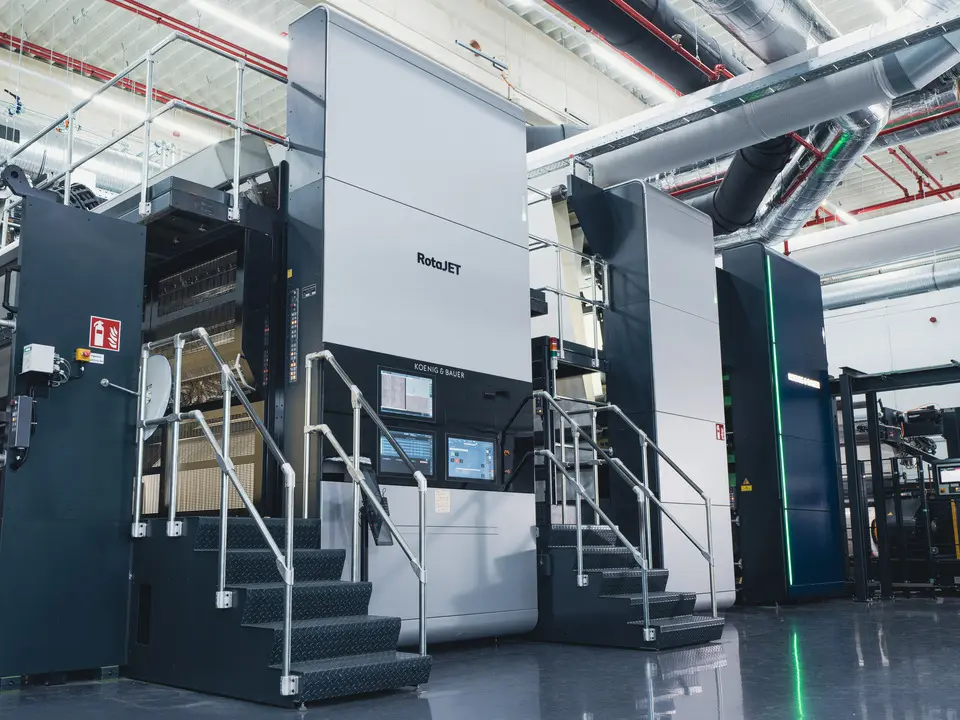

RotaJETDigital Webfed Printing Press

The Koenig & Bauer RotaJET is a high-volume digital printing press for the most diverse applications.

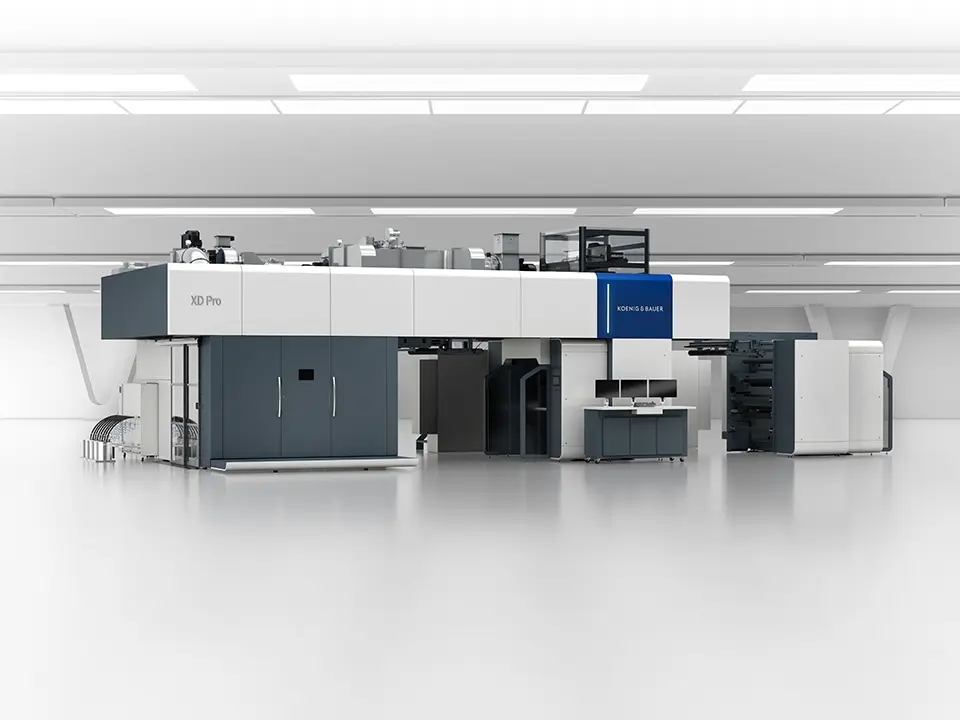

XD ProBest in Class CI Flexo Printing Press
