Quality Level with the Plus

The Röchling Group has been shaping industry.Worldwide.
For nearly 200 years. Röchling transform the lives of people every day with customized plastics: they reduce the weight of cars, make medication packaging more secure and improve industrial applications. The workforce of around 11,000 people is located in the places where the customers are – in 90 locations in 25 countries. The Group´s three divisions generated joint annual sales of 2.140 billion euros in 2018.

The Medical division offers customers a wide range of high-quality, customized components and assemblies, right through to end-to-end OEM products. The product portfolio also includes standard plastic products, with special expertise in the fields of diagnostics, fluid management, pharma, surgery and interventional. These areas of competence are complemented by an enhanced range of services for development and regulatory affairs, right through to approval of end-to-end medical products.

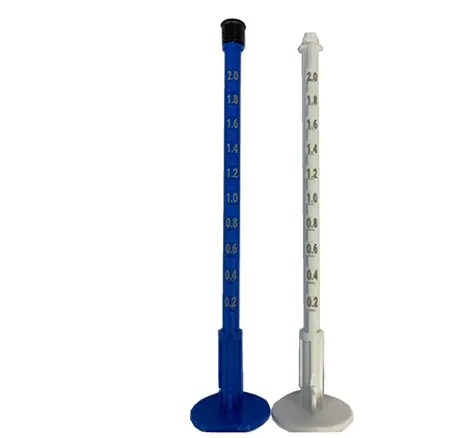

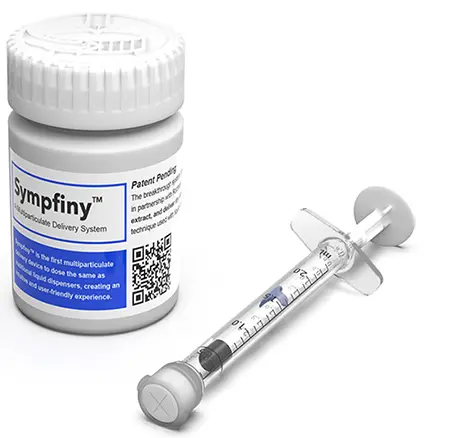

The newly developed and patented medical delivery system is composed of three different components. These are made of various polymers and color pigments (white, blue and transparent). These parts must be given a durable and resistant marking.
The filigree typeface of the scale must be reliably and easy to read. A constant quality is essential. At once, marking must be done as quickly as possible with a maximum of 5 seconds per component.
For an alternative solution, the costinsentive use of two lasers would be necessary.

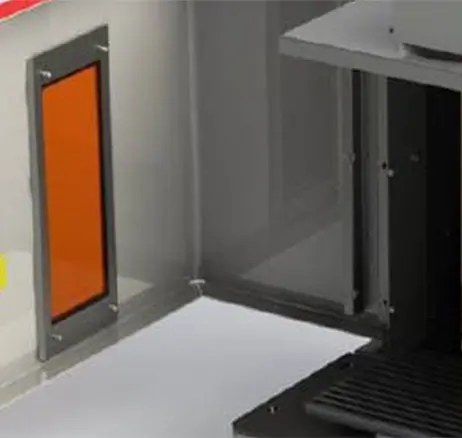

The recommendation of a pigments supplier initiated the contact between Röchling Medical and Koenig & Bauer Coding.An ideal combination of pigmentation, basic material and laser system was evaluated within the shortest possible time in close cooperation of all project participants.The best results for the highcontrast marking, both on the transparent and on the opaque plastic components, were delivered by a solid-state laser from the wideranging laser portfolio.Until the final series production iscompleted, an iLASERBOX 450 as a stand-alone solution was installed. It marks the components with only one laser in an ISOcertified clean room. The special laser lens for large working areas and the sophisticated workpiece holder have reduced the marking time to approx. 2 seconds per component.

Certified according laser protection class 1, the all-in-one solution, including manual workstation, laser, fume extraction and 21CFR Part 11- software for tracking the production steps has been optimally combined from standard components to meet Röchlings´s requirements.

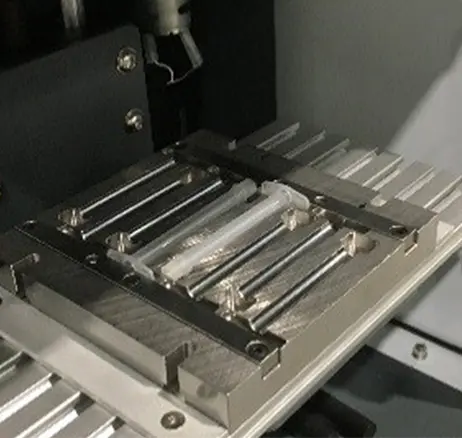

Should the shape of the individual product solution be modified before series production begins, the workpiece holder in the iLASERBOX can be changed quickly. Everything tailored to the requirements of the customer.
For series production the laser can easily be integrated into the production line.
