XC

Compact CI Flexo Printing Press

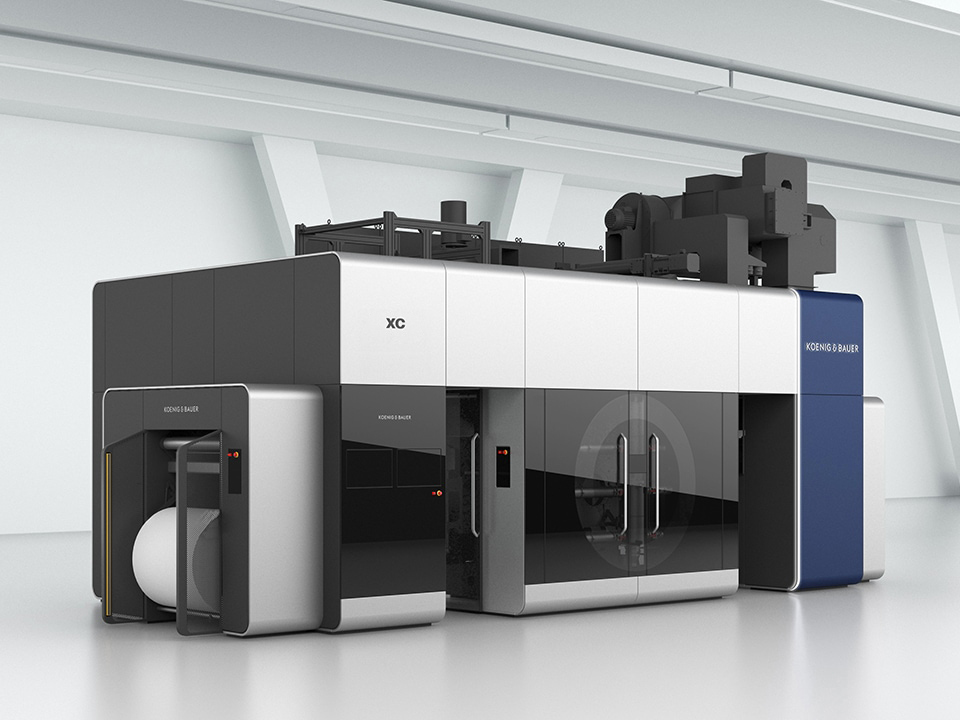

The XC is a CI Flexo printing press designed specifically for the economical production of short and medium runs.

XC

Compact CI Flexo Printing Press

  • Small dimensions and high print quality thanks to a stable cylinder and frame concept
  • User-oriented machine design with intuitive user interfaces
  • Fast job changeovers to shorten set-up times
  • Attractive investment level with optional equipment components

Compact Concept, Economical Printing

The XC was developed specifically for packaging printers looking to produce short and medium runs flexibly on a reduced footprint.

Thanks to its well-thought-out machine concept, it enables fast job changeovers and can be integrated into existing production halls in a space-efficient manner. Optional equipment components allow drive and drying systems to be tailored to specific production requirements.

This makes the XC an economical entry point into the CI flexo printing market for companies transitioning from offset or gravure printing as well as experienced flexo printers.

  • Targeted airflow between the printing units optimises the drying process
  • Ergonomic design for reduced cleaning times

  • Reduced tendency for ghosting effects compared to standard chamber doctor blades due to optimized blade geometry
  • Shortened set-up times compared to conventionally bolted systems thanks to a tool-free changeover system

  • Capture of solvent emissions (VOCs) at the dryer bridge prior to exhaust air cleaning via integrated intermediate extraction
  • High production speed with heavy varnish application due to targeted airflow management in the drying zone

  • User-friendly HMI design
  • Intuitive operator console
  • Equipped with open data interfaces for integration into networked Industry 4.0 environments and ERP systems

Technical Data of the XC

StandardOptional

Printing Units

8

–

Printing Width

620 – 1,000 mm (24.41 – 39.37 in)

–

Printing Repeat

260 – 650 mm (10.23 – 25.59 in)

Up to 800 mm (31.49 in)

Max. Production Speed

400 m/min (1,312 ft/min)

–

Reel Diameter

1,000 mm (39.37 in)

–

Inks

Water- & solvent-based

UV LED
