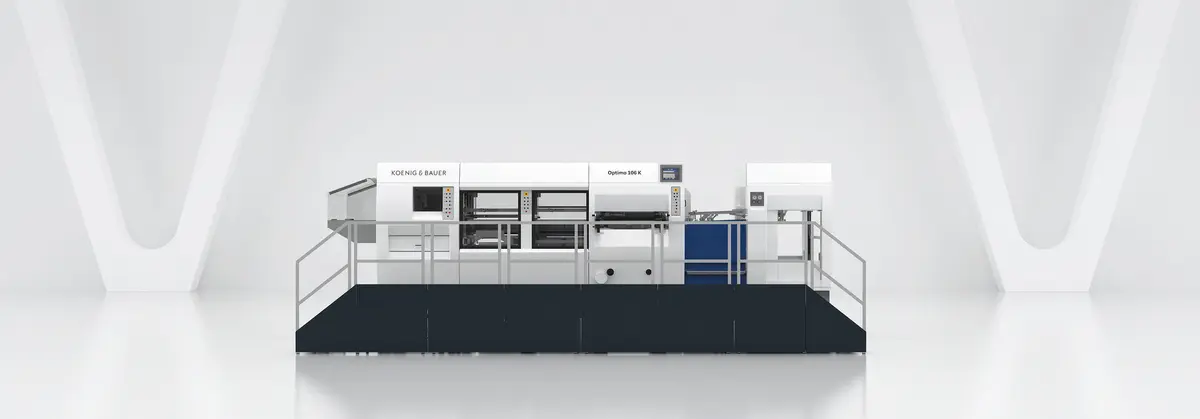

Optima 106 | Optima 106 K
Medium Format Flatbed Die-Cutter
The Optima 106 series is the perfect solution to step into the modern folding carton production.

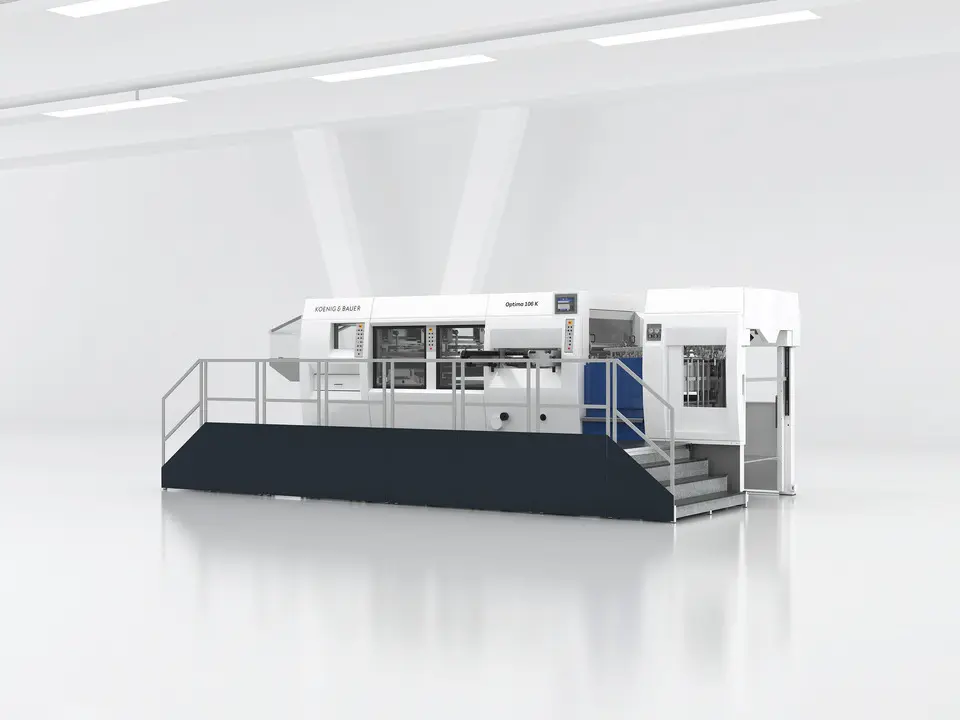

Optima 106 | Optima 106 K
Medium Format Flatbed Die-Cutter
- Maximum output with die-cutting speeds of up to 8,500 sheets/h
- Top price/performance ratio and maximum productivity
- High substrate flexibility of up to 1.5 mm cardboard and 3 mm corrugated board
- Short makeready times for job changes
- High operating comfort and easy handling
Attractive and Successful in Industrial Folding Carton Production
The flatbed die-cutters of the Optima 106 series offer the perfect platform for a successful start into modern folding carton production. They meet all the requirements and quality parameters for modern and cost-orientated production of die-cut products.
They handle sheet formats of up to 750 × 1,060 mm and stand out thanks to their ease of operation and short make-ready times for fast job changes.
While the Optima 106 is ideal for cutting, creasing and stripping, the Optima 106 K with integrated blanking provides even more efficiency.

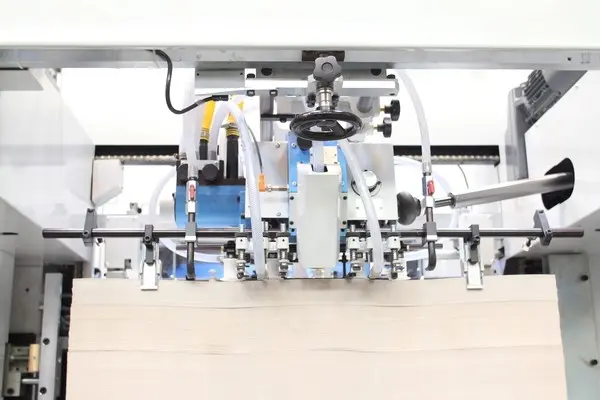

- Automatic feeder for processing paper, cardboard and corrugated board
- Automatic, lateral pile alignment for perfect sheet travel
- Sensor-controlled front lays for a perfect register
- Manual non-stop system for the uninterrupted production

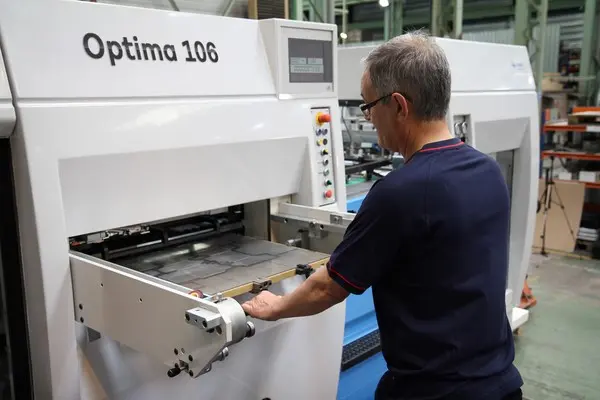

- Pneumatic quick-lock system Fast-Flow for fast and exact fixing of the upper die-cutting tool
- Automatic locking of die-chase and counterplate
- Motorised adjustment of the die-cutting pressure
- High operating comfort and easy handling due to the intuitive operating concept at the touchscreen

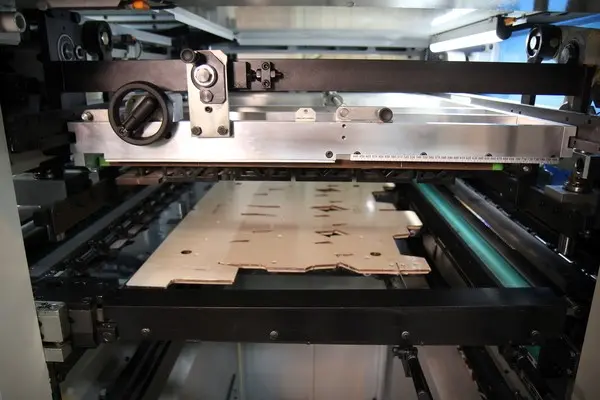

- Pneumatic quick-lock system Fast-Flow for fast and exact fixing of the upper stripping tool
- Universal lower stripping frame
- Pre-makeready table for preparing the next job during ongoing production

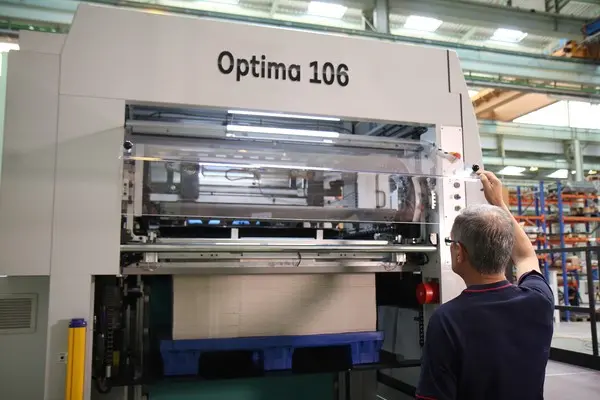

- Pneumatic quick-lock system Fast-Flow for fast and exact fixing of the blanking tool
- Automatic interleaving device - easily programmable for each job through the touchscreen
- Non-stop system with swords for fast pallet changes and uninterrupted die-cutting production
The Perfect Match for Nearly Every Application in Folding Box Production
Packaging for industry
- Product shipping
- Office supplies
- Secondary packaging
Packaging for personal care products
- Cosmetics
- Perfume
- Pharmaceuticals
- Health and care products (OTC)
Packaging for food products
- Fresh produce
- Frozen foods
- Dairy products
- Confectionary
- Cereals
- Snacks
- Beverage cartons
- Dietary supplements
Packaging for non-food products
- Clothing
- Household appliances
- Electronics
- Toys
- Cleaning products
- DIY products
Technical Data of the Optima 106 | Optima 106 K
| Optima 106 | Optima 106 K | |
|---|---|---|
Max. Sheet Format | 750 x 1,060 mm | 750 x 1,060 mm |
Min. Sheet Format | 350 x 400 mm | 350 x 400 mm |
Max. Die-Cutting Format | 736 x 1,060 mm | 736 x 1,060 mm |
Substrate Range Paper | From 90 g/m² | From 90 g/m² |
Substrate Range Solid Board | Up to 1.5 mm | Up to 1.5 mm |
Substrate Range Corrugated Board | Up to 3 mm | Up to 3 mm |
Max. Production Speed | 8,500 sheets/h | 8,500 sheets/h |
Min. Gripper Margin | 9 mm | 9 mm |
Max. Gripper Margin | 17 mm | 17 mm |
Max. Die-Cutting Pressure | 275 t | 275 t |
