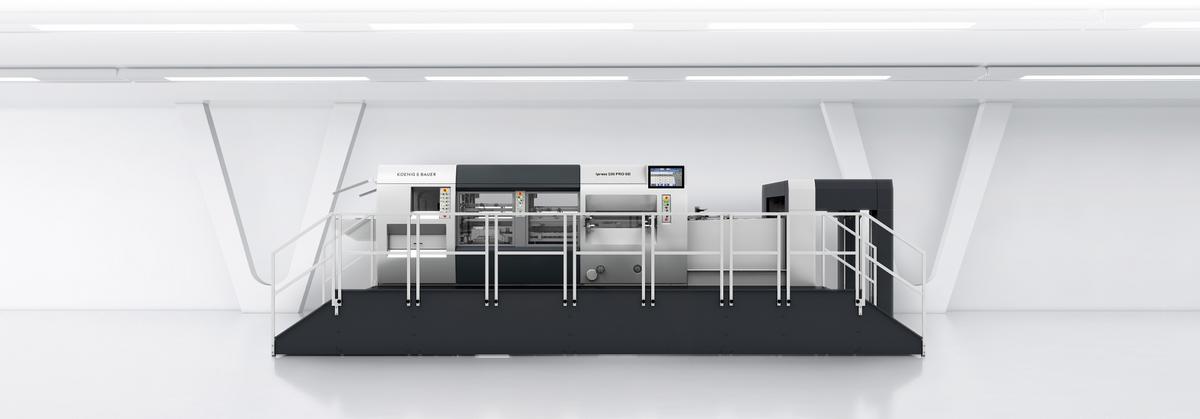

Ipress 106 PRO S | Ipress 106 PRO SB
Medium Format Flatbed Die-Cutter
The medium format flatbed die-cutters of the Ipress 106 PRO series are the suitable technology for an efficient folding box production.
Ipress 106 PRO S | Ipress 106 PRO SB
Medium Format Flatbed Die-Cutter
- Exceptionally efficient with die-cutting speeds of up to 8,500 sheets/h
- Unbeatable price-performance-ratio
- High substrate flexibility up to 3 mm corrugated board
- Short make-ready times for job changes
- Outstanding die-cutting quality and ultimate register accuracy
- Easy handling and maximum operating comfort
Efficiency Redefined – The Flatbed Die-Cutter Ipress
Ideal for folding box and label manufacturing, as well as industrial commercial printing applications, the medium-format flatbed die-cutters expertly process sheet sizes up to 750 x 1,060 mm, delivering precise and high-quality print products.
The Ipress 106 PRO S, featuring a standard delivery, facilitates efficient die-cutting, creasing, and embossing processes. The Ipress 106 PRO SB enhances this capability further with an integrated blanking station for superior performance.
Key characteristics of both machines include remarkable versatility regarding a wide range of die-cut materials, advanced automation for minimised setup times during make-ready and job changes and a high degree of operating comfort.

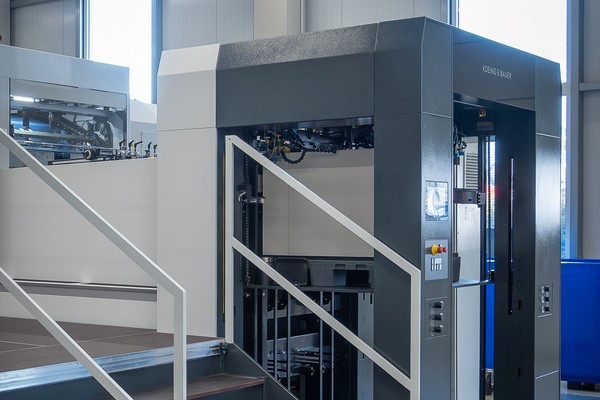

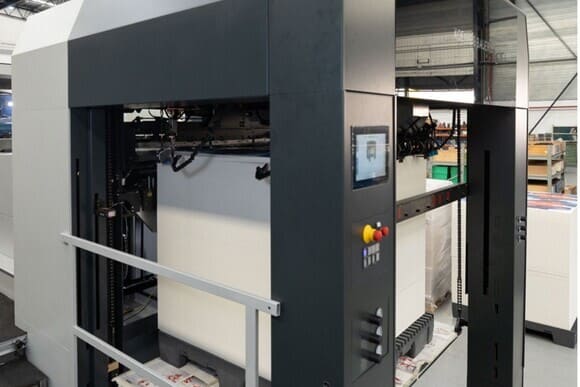

- Optimal sheet infeed and maximum production output thanks to dedicated drive technology
- Process reliability and maximum flexibility, even with demanding substrates
- Fully automatic non-stop system solutions for uninterrupted die-cutting production
- Maximum die-cutting quality thanks to the perfect register
- Exact alignment of the sheet when transferring it to the machine's gripper system
- Reads the special marks individually printed or those integrated in the colour bar of the sheet

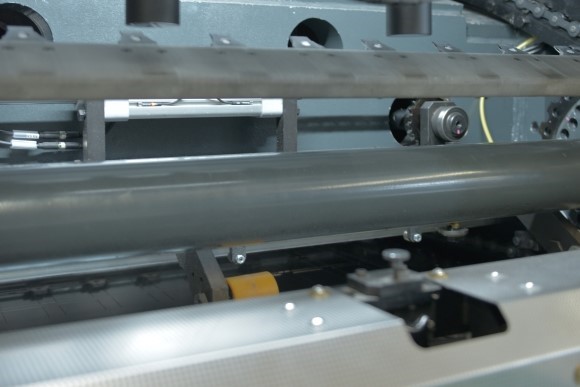

- Cut2Print PLUS especially recommended for packaging made of corrugated and laminated materials
- Compatible to other register marks available on the market

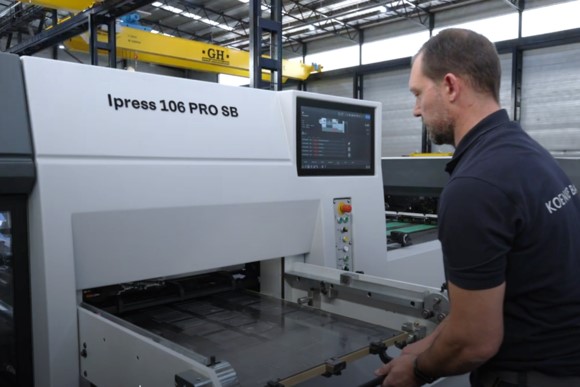

- Pneumatic quick-lock system Fast-Flow for fast and exact fixing of the upper die-cutting tool
- Tool-free positioning of the die-cutting tools with automatic locking and unlocking of the die-chase and counterplate
- Varioplan technology for optimum die-cutting results
- Job-specific saving of machine settings for shorter makeready times in case of repeat jobs
- Integrated upper frame with Fast-Flow quick-lock pneumatic system for dedicated tools
- Easy and fast adjustment regulators for the upper and lower stripping frames
- Pre-makeready table to prepare the next job while the machine is in operation
- Gripper opener for quality control

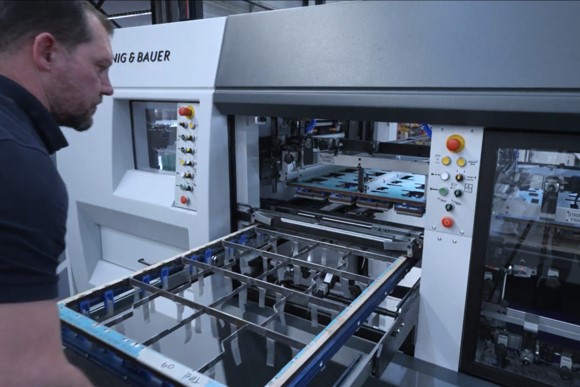

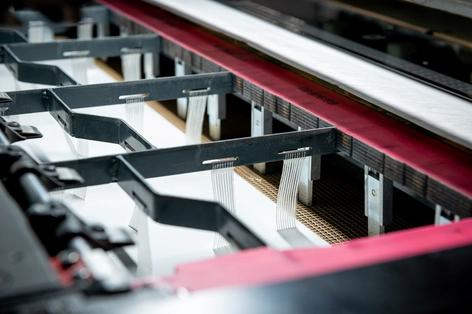

- Integrated upper frame with pneumatic quick-lock system Fast-Flow for fast and exact fixing of layout-specific blanking tools
- Automatic interleaving and non-stop device by means of swords, easily programmable for each job through the touch screen
- Uninterrupted production process and enhanced efficiency thanks to non-stop feature with fully automatic pallet changing

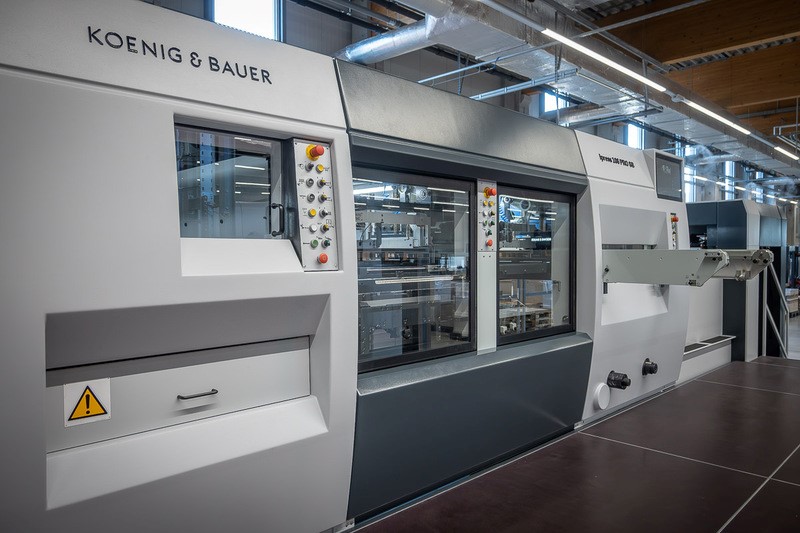

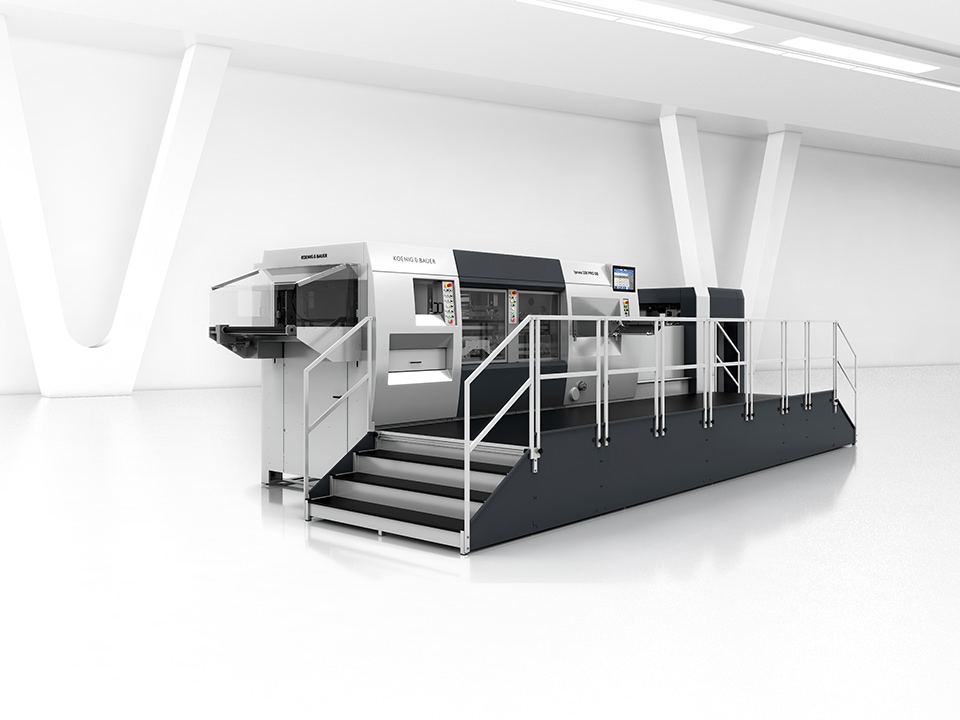

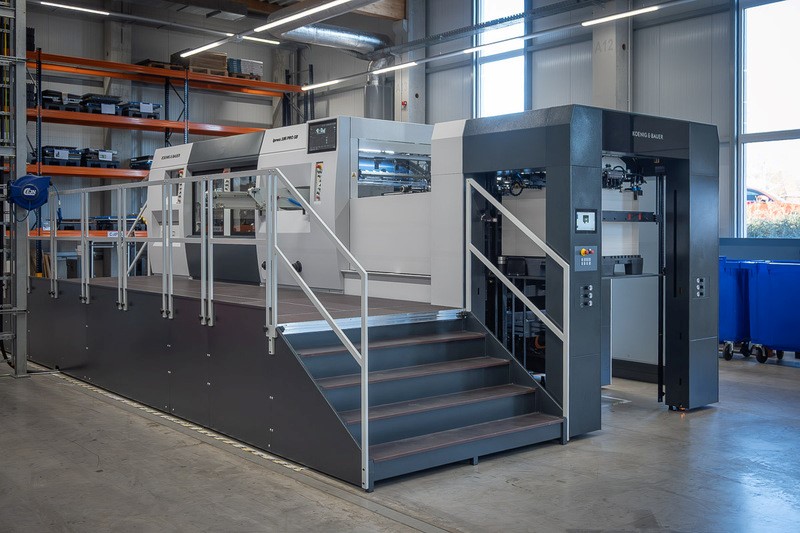

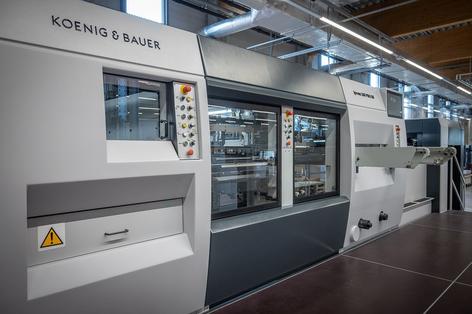

Impressions of the Ipress 106 PRO S | Ipress 106 PRO SB
The Perfect Match for Nearly Every Application in Folding Box Production
Packaging for industry
- Product shipping
- Office supplies
- Secondary packaging
Packaging for personal care products
- Cosmetics
- Perfume
- Pharmaceuticals
- Health and care products (OTC)
Packaging for food products
- Fresh produce
- Frozen foods
- Dairy products
- Confectionary
- Cereals
- Snacks
- Beverage cartons
- Dietary supplements
Packaging for non-food products
- Clothing
- Household appliances
- Electronics
- Toys
- Cleaning products
- DIY products
Technical Data of the Ipress 106 PRO S | Ipress 106 PRO SB
| Ipress 106 PRO S | Ipress 106 PRO SB | |
|---|---|---|
Max. Sheet Format | 750 x 1,060 mm | 750 x 1,060 mm |
Min. Sheet Format | 350 x 450 mm | 350 x 450 mm |
Max. Die-Cutting Format | 736 x 1,060 mm | 736 x 1,060 mm |
Substrate Range Paper1) | From 90 g/m² | From 90 g/m² |
Substrate Range Solid Board1) | Up to 1.5 mm | Up to 1.5 mm |
Substrate Range Corrugated Board1) | Up to 3 mm | Up to 3 mm |
Max. Mechanical Speed2) | 8,500 sheets/h | 8,000 sheets/h |
Min. Gripper Margin | 9 mm | 9 mm |
Max. Gripper Margin | 17 mm | 17 mm |
Max. Die-Cutting Pressure3) | 275 t | 275 t |
1) Runnability depends on material type and quality, grain direction, stiffness, and sheet flatness | ||
