CutPRO Q 106 SB

Medium Format Flatbed Die-Cutter

As one of the most powerful flatbed die-cutters in its class, the CutPRO Q 106 SB stands for maximum performance in industrial folding carton production.

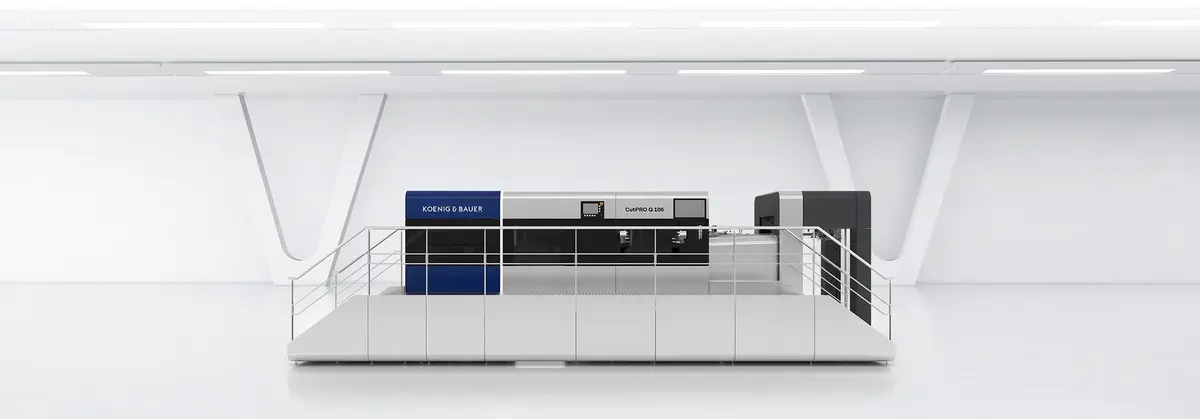

CutPRO Q 106 SB flatbed die-cutter from Koenig & Bauer Sheetfed

CutPRO Q 106 SB

Medium Format Flatbed Die-Cutter

  • Extremely compact design
  • Maximised output with die-cutting speeds up to 9,000 sheets/h
  • High degree of flexibility to handle a wide range of substrates
  • Short make-ready times and best performance
  • Outstanding die-cutting quality and ultimate register accuracy

The New Performance Benchmark in Flatbed Die-Cutting

Compact and innovative - the flatbed die-cutter CutPRO Q 106 SB offers the perfect die-cutting technology, and with it the ideal prerequisites for smooth daily production.

It enables to master the highly individual demands of the market, while optimising the in-house production and reducing the processing time between order receipt and product dispatch to an absolute minimum.

Innovative technical solutions, well-known from the successful Rapida medium-format series, make the CutPRO Q 106 SB something unique.

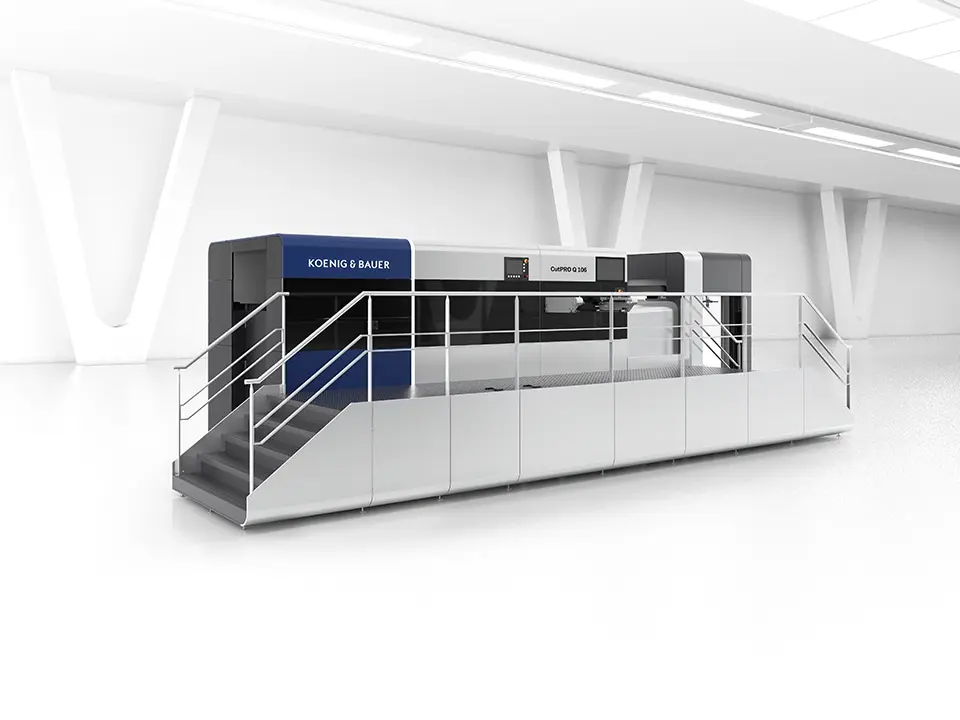

Perspective shot of the CutPRO Q 106 SB flatbed die-cutter from Koenig & Bauer Sheetfed

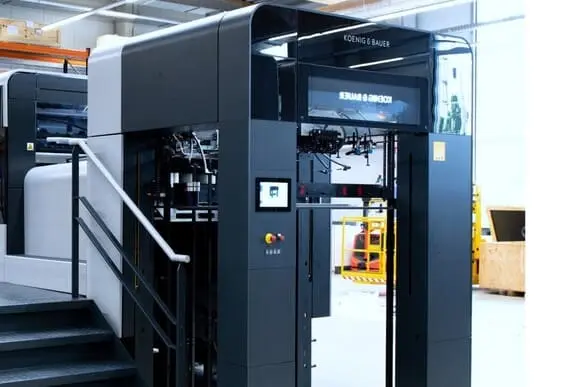

  • Extremely stable and reliable sheet feeding process thanks to innovative  dedicated drive technology
  • Process reliability and maximum flexibility, even with demanding substrates
  • Fully automatic non-stop system solutions for uninterrupted die-cutting production

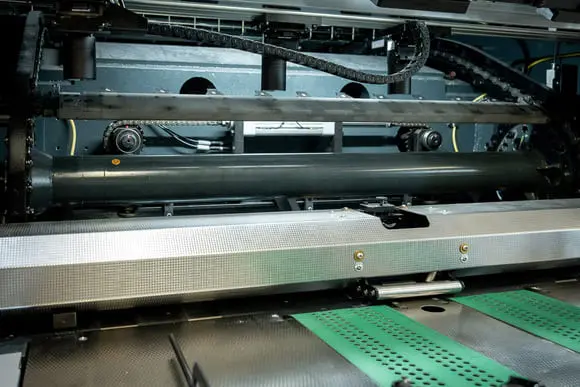

  • Maximum die-cutting quality thanks to the perfect register
  • Exact alignment of the sheet when transferring it to the machine's gripper system
  • Reads the special marks individually printed or those integrated in the colour bar of the sheet
  • Cut2Print PLUS especially recommended for packaging made of corrugated and laminated materials
  • Compatible to other register marks available on the market

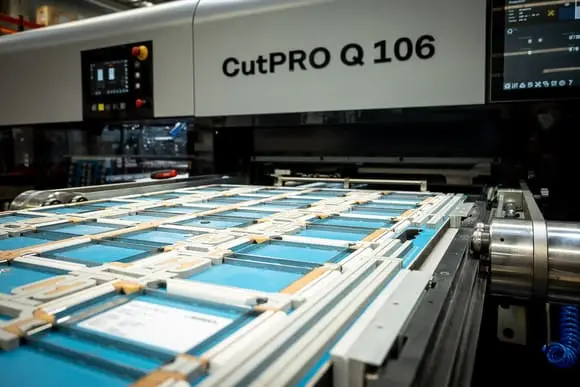

  • Fast and exact fixing of the upper die-cutting tool by pneumatic quick-lock system Fast-Flow
  • Varioplan technology for optimum die-cutting results
  • Closed loop pressure control and automatic temperature regulation
  • Easy-to-use and convenient machine operation
  • Integration into the Koenig & Bauer shop floor data collection

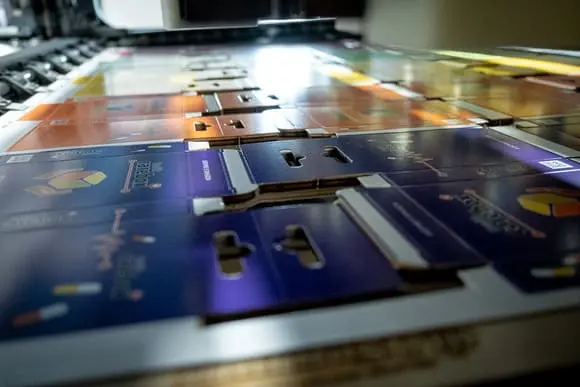

  • Fast and exact fixing of layout-specific stripping tools thanks to integrated upper frame with pneumatic quick-lock system Fast-Flow
  • Faster tool changes and  straightforward preparation by motorised alignment of the lower stripping frame
  • Uninterrupted monitoring of the process quality thanks to sample sheet removal directly before sheet transfer to the blanking station

  • Fast and exact fixing of layout-specific blanking tools thanks to integrated upper frame with pneumatic quick-lock system Fast-Flow

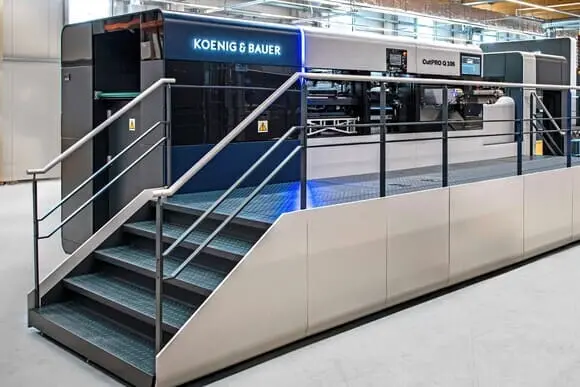

  • Automatic interleaving and non-stop device - all in one - to provide stack stability, while allowing the pallet changeover
  • Uninterrupted production process and enhanced efficiency thanks to non-stop feature with fully automatic pallet changing

The Perfect Match for Nearly Every Application in Folding Box Production

Packaging for industry

  • Product shipping
  • Office supplies
  • Secondary packaging

Packaging for personal care products

  • Cosmetics
  • Perfume
  • Pharmaceuticals
  • Health and care products (OTC)

Packaging for food products

  • Fresh produce
  • Frozen foods
  • Dairy products
  • Confectionary
  • Cereals
  • Snacks
  • Beverage cartons
  • Dietary supplements

Packaging for non-food products

  • Clothing
  • Household appliances
  • Electronics
  • Toys
  • Cleaning products
  • DIY products

Technical Data of the CutPRO Q 106 SB

Standard

Max. Sheet Format

760 x 1,060 mm

Min. Sheet Format

350 x 450 mm

Max. Die-Cutting Format

736 x 1,060 mm

Substrate Range (Paper)1)

From 90 g/m²

Substrate Range (Solid Board)1)

Up to 1.5 mm

Substrate Range (Corrugated Board)1)

Up to 3 mm

Max. Mechanical Speed2)

9,000 sheets/h

Min. Gripper Margin

10 mm

Max. Gripper Margin

18 mm

Max. Die-Cutting Pressure3)

275 t

1) Runnability depends on material type and quality, grain direction, stiffness, and sheet flatness
2) Actual production speed depends on material, sheet size, sheet layout, tooling, and environmental conditions
3) Required cutting force depends on the total length of cutting and creasing rules in the layout
