From Simple to Even Simpler

Ink-jets, hand-held scanners and software boost production diversity

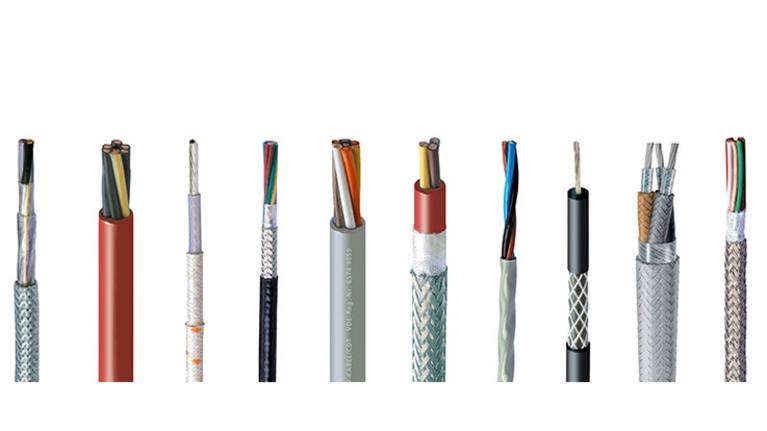

samples of cable variety able to be marked by continuous inkjet printer alphajet

Cost pressure in companies, especially in production, is increasing. At the same time, the variety of products is growing.  The modular software suite from Koenig & Bauer Coding for efficient product coding, helps to reduce costs and simplifies individual design options.

alphaJET continuous ink jet printers mark products with date, texts, marking lines up to complex barcodes contact-free. Each printer can be controlled directly from the control panel.

Once production lines are networked, operations involving manual printer handling often run up against limits. Frequently changing products can cause additional errors in manual operation and control. Typing mistakes or incorrect configuration lead to unpleasant consequences. For many years now, Koenig & Bauer has been simplifying the optimization of production processes by integrating a hand-held scanner. The software suite code-M complements the increasing networking of production within the context of Industry 4.0 and enables rapid adaptation to new trends. Thanks to its integration into the corporate network, job order preparation and production planning are directly linked to the printers in the line. The integration of code-M is seamlessly possible for the new alphaJET generation, regardless of whether new or already existing systems.

HEW-Kabel is a specialist in special cables and special lines

With more than 350 employees in the R & D, production and sales, HEW-KABEL develops and produces customer-specific cables and wires for customers in Germany and worldwide.

Its customers include companies in the automotive industry, medical technology sector and robotics, as well as in control technology and energy machine construction domain.

Over a period of more than 50 years, the company has developed numerous cable solutions with material competence and a special depth of production.

All HEW-Kabel’s products and processes are geared towards fulfilling stringent requirements and consistently manufacturing the suitable  product from the wide range of products with a high degree of precision.



“We are very satisfied with our inkjet printers and are currently replacing the alphaJET C series by the new alphaJET generation.”

Lisa Tintelnot, Technical purchaser

01 Extensive product portfolio

HEW has integrated more than 25 alphaJET continuous ink jets in several production lines, marking the variety of cable and wire. Depending on which ink is required, the ink jet printers at the lines are exchanged and configured vis-à-vis the device. Over the course of time, the inkjets were set up in an individual and unclear manner. This is a potential source of errors which needs to be eliminated.

02 Centralise, please

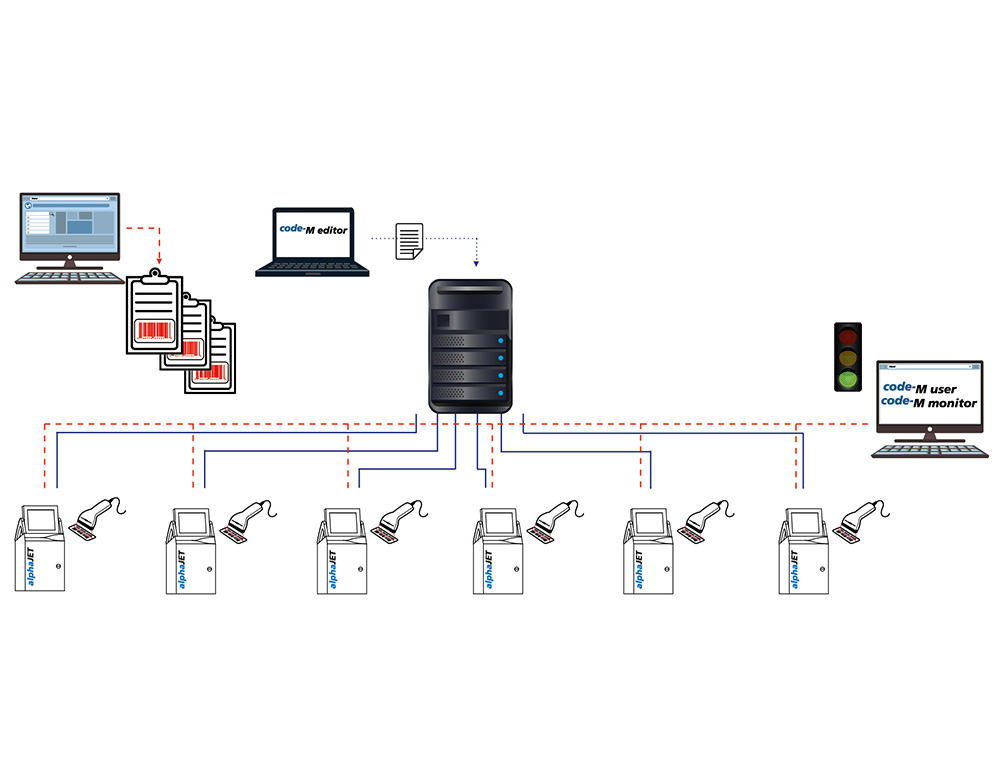

Apart from the production line and printers, the code-M editor now makes it possible to use a PC to centrally create the printing texts, which are then stored on the server computer. All alphaJET printers are connected to the server via Ethernet; and are synchronised with the latest printing texts in a 5-minute cycle.

The production order from the work preparation office carries a bar code. By scanning the barcode, the operator activates the JOB with all correct configuration and printing text directly on the alphaJET.

03 Simple networking

Sources of errors were eliminated by networking the alphaJET through a central server, and by using a hand scanner to activate the print jobs.

The status of the printers is monitored centrally with the software code-M monitor which runs on a PC. A single glance is all it takes to realise whether the printer is ready for printing, whether, for example, the printing head flap is open or whether the ink needs to be refilled. All printers can be operated centrally via code-M user. The identical user interface of the printer appears on the screen of the PC.

“Since we have implemented the software from Koenig & Bauer Coding, we can react even faster to the individual wishes of our customers. Centralized management of the inkjet printers makes a significant contribution to cost reduction costs.”

Lisa Tintelnot, Technical purchaser
